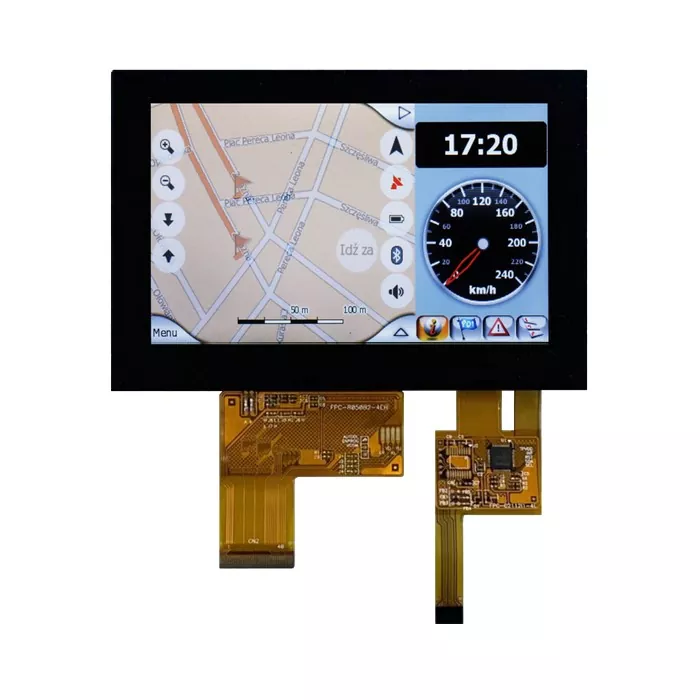

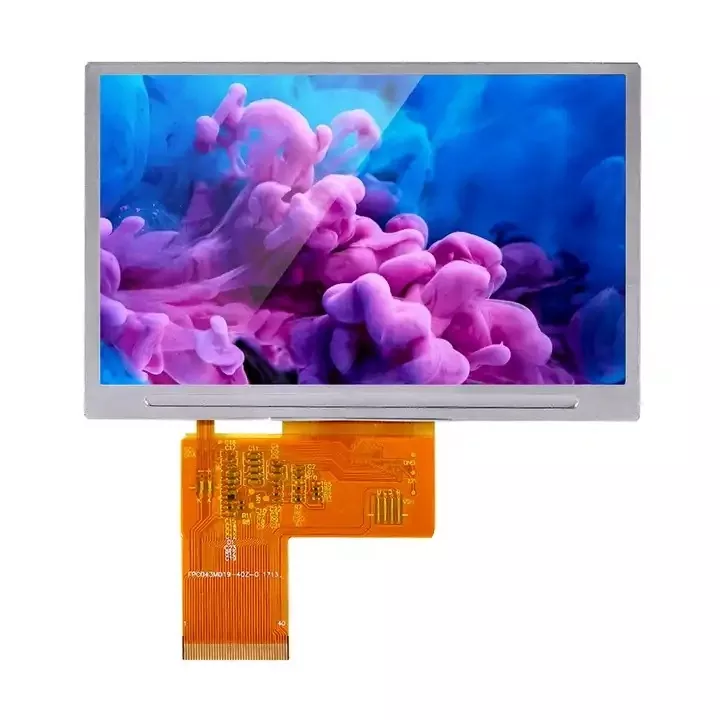

5 pulgada 800x480 Transflective TFT Module

Ang Victronix ay isang propesyonal na tagagawa ng TFT module at tagapagtustos sa China. Nasa loob kami ng larangang ito nang higit sa 18 taon at nakabuo ng ilang mga modelo hanggang ngayon. Ang Victronix 5 Inch 800x480 Transflective TFT Module ay isang 5 pulgada na grade-grade TFT LCD module na ininhinyero para sa hinihingi na mga kapaligiran. Nagtatampok ng teknolohiyang transflective TN, ang pagpapakita na ito ay naghahatid ng pambihirang kakayahang makita sa parehong direktang mga kondisyon ng sikat ng araw at mababang ilaw.

Modelo:VXT500BWEF-01

Magpadala ng Inquiry PDF Download

Paglalarawan ng Produkto

TFT Module can be found everywhere in life, what makes the Victronix 5 inch 800x480 Transflective TFT Module different from other manufacturers? At first, its 200 cd/m² typical luminance and 60:1 contrast ratio ensure it is sunlight readable and energy efficient. Secondly, it not only supports 24-bit RGB parallel, touch panel control pins (XR/YD/XL/YU) but also integrates a 6S2P white LED array (from30,000 to 50,000 hour lifespan) ensuring that it can be used for long-lasting in different industrial situations. Besides, it was validated through rigorous environmental testing (thermal cycling, humidity) to operate reliably from -20°C to +70°C.

This Victronix 5 inch TFT Module is suitable for industrial HMIs, outdoor equipment, portable instruments, and medical devices requiring sunlight-readable performance.

Key Features:

· 5-inch transflective LCD

· 800×480 resolution

· Sunlight-readable & energy-efficient

· Robust design for harsh conditions

General Specifications

VXT500BWEF-01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light unit. The 5.0¢¢ display area contains 800X480 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.

Item	Contents	Unit	Note
LCD Type	TFT	-
Display color	16.7M
Viewing Direction	6	O'Clock
Gray scale inversion direction	12	O'Clock

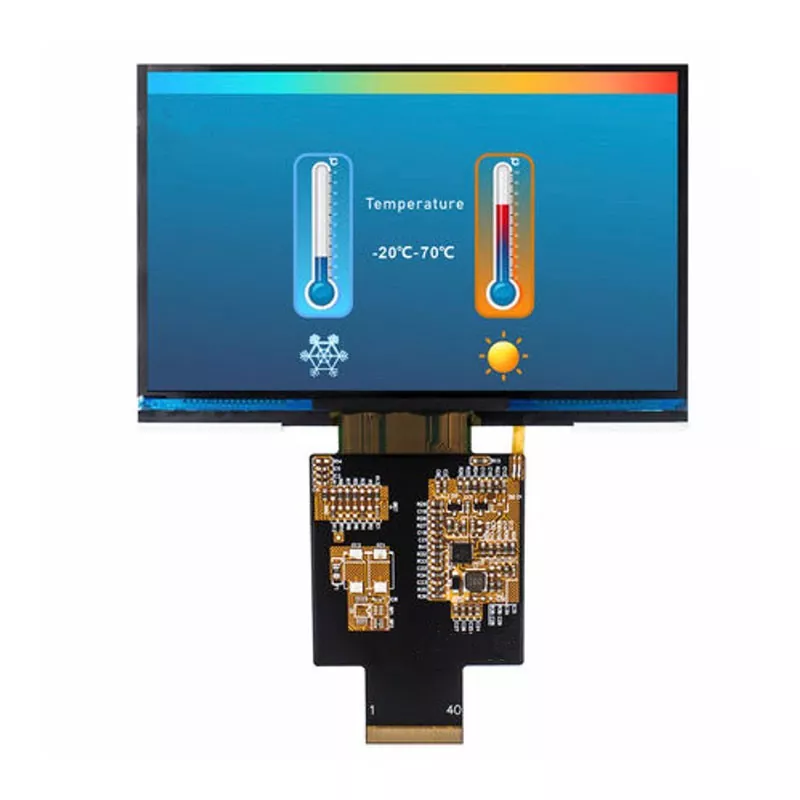

Operating temperature	-20~+70	℃
Storage temperature	-30~+80	℃

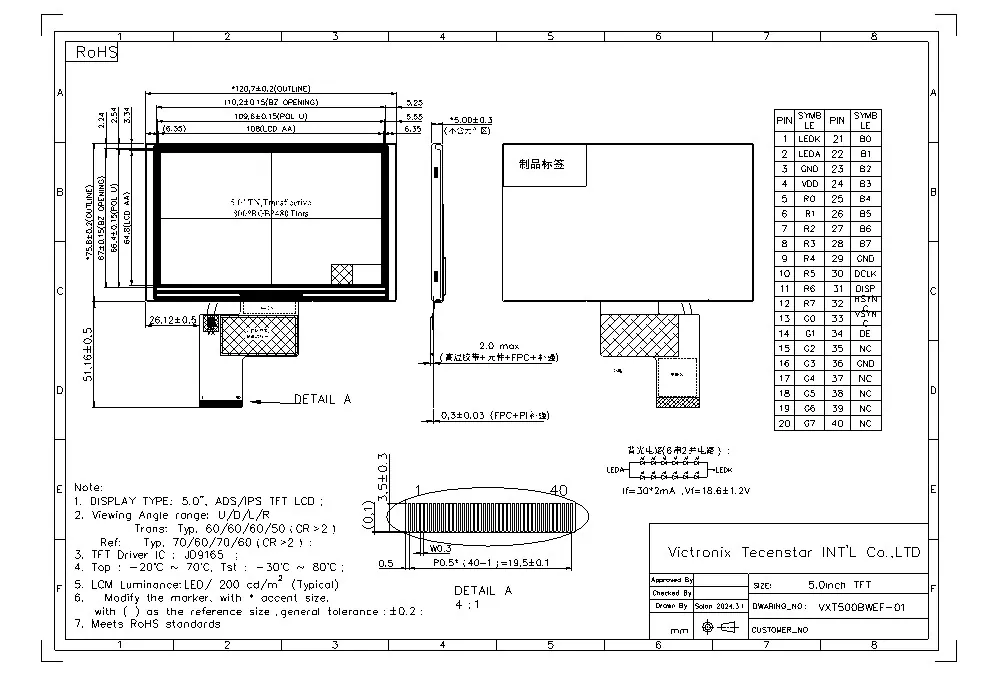

Module size	Refer to outline drawing	mm
Active Area(W×H)	108X64.8	mm
Number of Dots	800x480	dots
Driver IC	JD9165	-
Power Supply Voltage	3.3	V
Outline Dimensions	Refer to outline drawing	-
Backlight	6S2P-LEDs(white)	pcS
Interface	RGB	-
