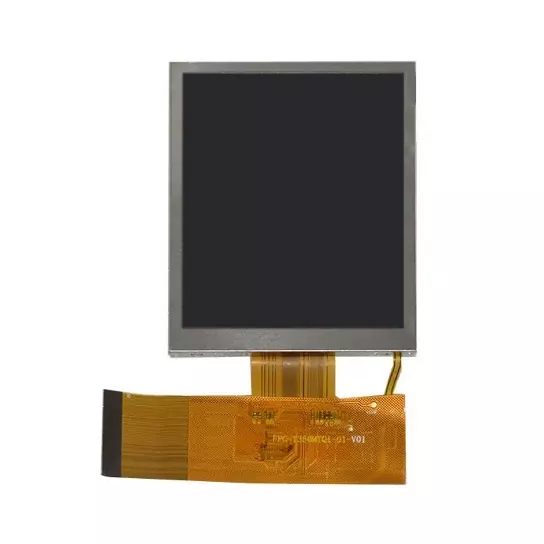

3.5 pulgada transflective 240*320 TFT module

Ang VXT350FPQI-01 ay isa sa Round Trans-Reflective IPS TFT Module ng Victronix. Bilang isang pabrika sa Tsina, ang Victronix ay may kakayahang umangkop na kapasidad upang ipasadya ang 3.5 pulgada na transflective 240*320 TFT module na may iba't ibang hitsura at sukat ayon sa mga kinakailangan sa customer.

Modelo:VXT350FPQI-01

Magpadala ng Inquiry PDF Download

Paglalarawan ng Produkto

This VXT350FPQI-01 applies to 3.5 inch Transflective 240*320 TFT Module,100nits brightness,8/16bits MCU interface, is designed for E-bike, digital camera application, industrial equipment device and other electronic products which require high quality flat panel displays, excellent visual effect, especially in strong sunlight environment.

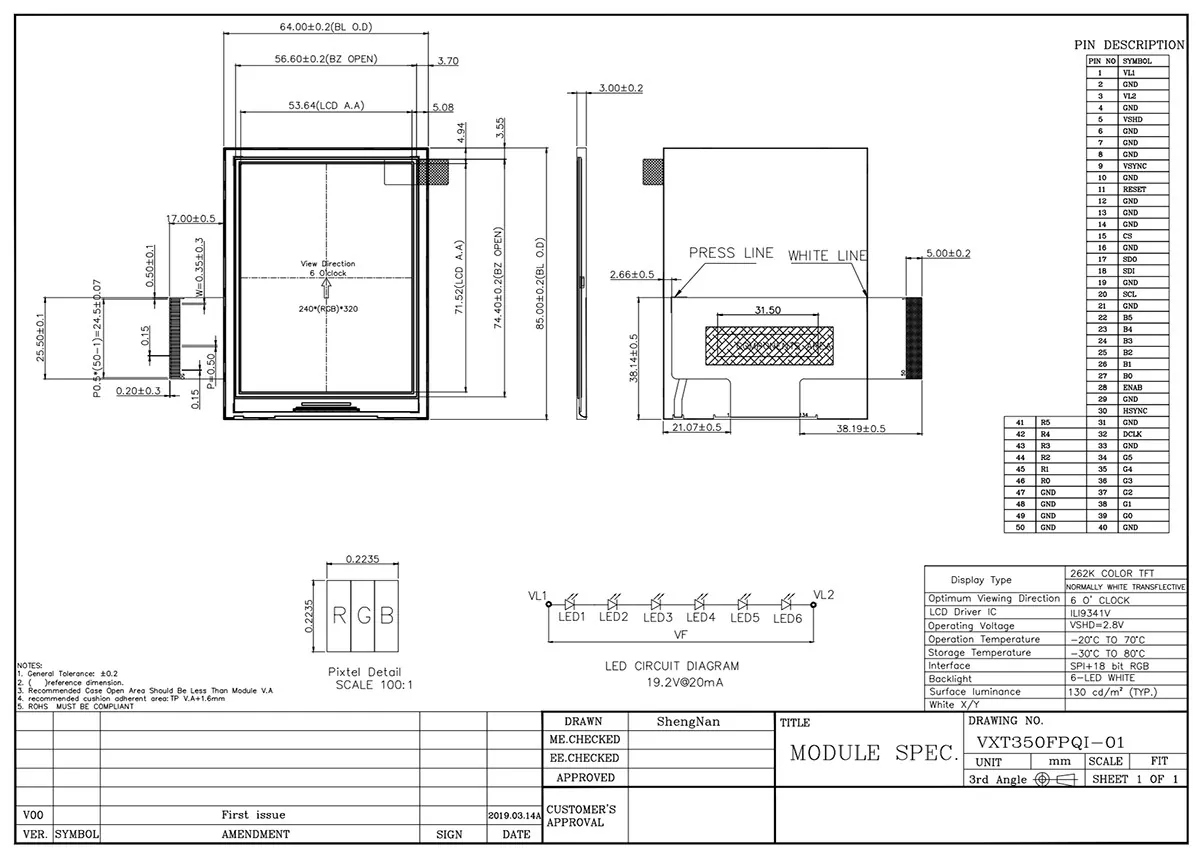

General Specification

Item	Contents	Unit
LCD TYPE	TFT/TRANSFLECTIVE
MODULE SIZE(WHT)	64852.93	MM
ACTIVE SIZE(W*H)	53.64*71.52	MM
PIXEL PITCH(W*H)	0.2235*0.2235	MM
NUMBER OF DOTS	240*320
DRIVER IC	ILI9341V
INTERFACETYPE	SPI+18 BIT RGB
TOP POLARIZER TYPE	GLARE
RECOMMEND VIEWING DIRECTION	6	O'CLOCK
GRAY SCALE INVERSION DIRECTION	12	O'CLOCK
BACKLIGHT TYPE	6-DIES WHITE LED
TOUCH PANEL TYPE	WITHOUT
