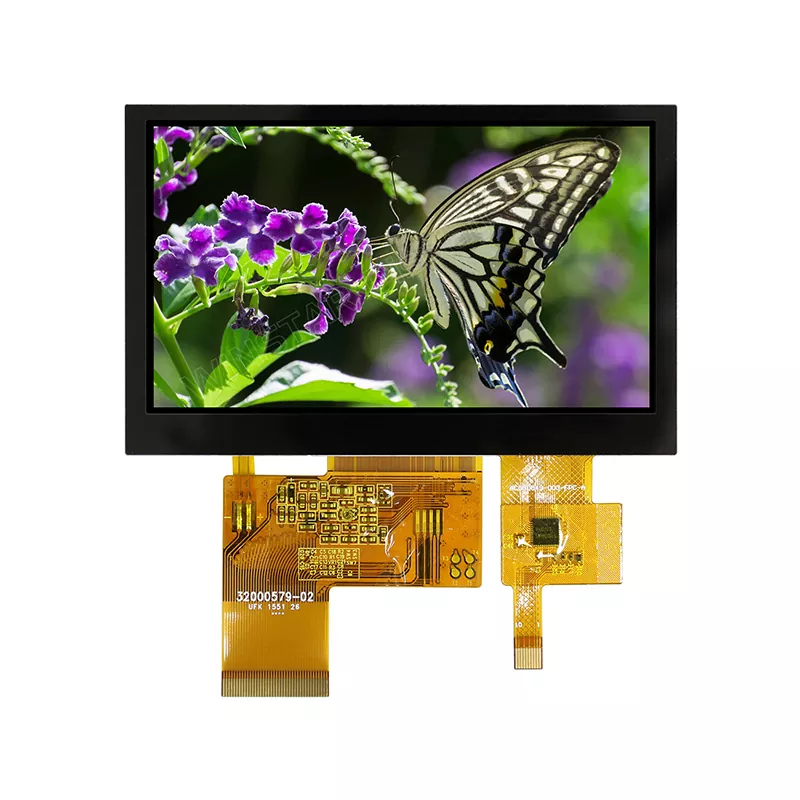

4.3 pulgada 480x272 IPS TFT module na may CTP

Ang Victronix ay isang propesyonal na tagagawa ng TFT module at tagapagtustos sa China. Mahigit 18 taon na kaming nasa larangang ito. At nakabuo kami ng maraming mga modelo sa ngayon. Ang Victronix 4.3 pulgada 480x272 IPS TFT module na may CTP ay isang mataas na pagganap na 4.3-pulgada na module ng TFT LCD na idinisenyo para sa hinihiling na naka-embed at pang-industriya na aplikasyon. Ang pagsasama-sama ng isang maliwanag na pagpapakita na may tumutugon na pag-andar ng multi-touch, ang module na ito ay naghahatid ng pambihirang visual na kaliwanagan at pakikipag-ugnayan ng gumagamit sa isang compact form factor.

Modelo:VXT430MPSA-01CA

Magpadala ng Inquiry PDF Download

Paglalarawan ng Produkto

What are the competitive advantages of the Victronix 4.3 inch 480x272 IPS TFT Module with CTP in the competitive situation of TFT Module manufacturers? At first, its wide viewing angle of 80° in all directions and a high contrast ratio of 1000:1 make it more suitable for harsh industrial. Secondly, it integrates an LED backlight unit with a typical brightness of 400 cd/m² and a rated life of 50,000 hours (at 50% initial brightness). Besides, not only does it feature a parallel 24-bit RGB interface (ST7282A controller) for seamless integration with common processors and FPGAs. DE, SYNC, and SYNC+DE modes are supported, but it integrates a 5-point multi-touch panel (CTP) with high precision (±1.5mm center, ±2.5mm edge) and robust 6H surface hardness. Controlled via I²C interface (ST1633i). In addition, it operates reliably in a wide temperature range (-20°C to +70°C) and withstands storage from -30°C to +80°C.

This Victronix 4.3inch TFT Module is suitable for Industrial HMI, portable instrumentation, medical devices, embedded control systems, kiosks, and any application requiring a reliable, bright display with intuitive touch interaction.

General Specifications LCD Parameter

Item	Contents	Unit	Note
LCD Type	TFT	-
Display color	16.7M
Viewing Direction	ALL	O’Clock
Grayscale inversion direction	-	O’Clock
Operating temperature	-20~+70	℃
Storage temperature	-30~+80	℃
Module size	4.3	inch
Active Area(W×H)	95.04x53.86	mm
Number of Dots	480x272	dots
Controller	ST7282A	-
Power Supply Voltage	3.3	V

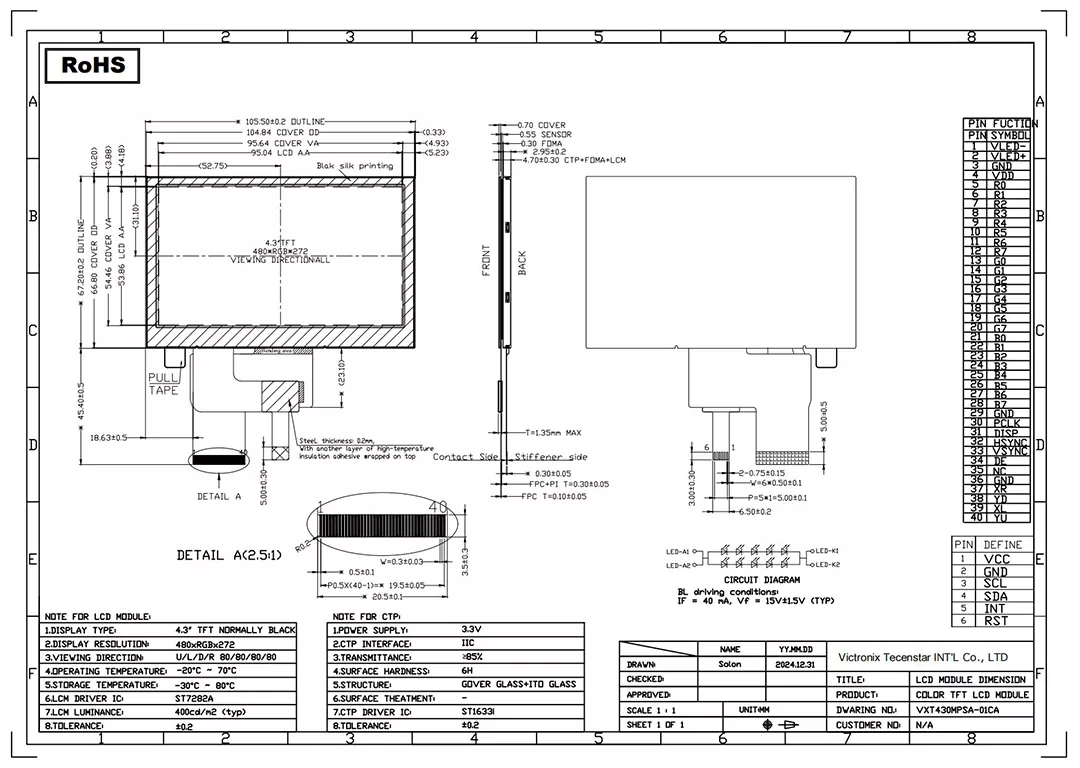

Outline Dimensions	105.50x67.20x4.70	mm
Backlight	5X2-LEDs (white)	pcs
Weight	---	g
Interface	RGB	-

CTP Parameter

Item	Contents	Unit	Note
Cover View Area	95.64(H)X54.46(V)
CTP Resolution	480*272	dots
Interface Mode	IIC	-
Touch Mode	5 Human fingers multi-touch	-
Surfacehardness	6H	-
Transparency	>=85%	-
Accuracy	Centre +/-1.5,Edge +/-2.5mm	mm
CTP Controller	ST1633i	-
Power Supply Voltage	3.3	V
